MOTOROLA APX APX6500 UHF 450-520 MHZ DIGITAL RADIO P25 PHASE I & 2 TDMA
MOTOROLA APX APX6500 UHF 450-520 MHZ DIGITAL RADIO P25 PHASE I & 2 TDMA
Couldn't load pickup availability
Professional-grade Motorola APX6500 mobile digital radio engineered for demanding UHF communications. This tested unit operates across 450–520 MHz with full P25 Phase I & II TDMA compliance, paired with an authentic Motorola O5 control head. Features triple encryption capability: KG1 (ADP), KG2 (AES-256), and KG3 (AES-GCM) for secure operations. Every unit undergoes rigorous validation using our Aeroflex 3920 auto-test and alignment suite, ensuring factory-specification performance and reliability. Includes complete accessory package. Ideal for public safety, enterprise, and mission-critical deployments.
Flashcode: Rz804h-09H691-8-040000-000000
G806: ASTRO IMBE Digital Operation
G996: Over the Air Provisioning
G170: Trunked Remote Monitor/Radio Trace
G298: Hardware Multikey Encryption w/ OTAR
GA01767: ASTRO 25 Trunking Radio Authentication
GA09000: Tone Signalling
GA00345: Primary Band: UHF Range 2 Mid Power
QA01749: Legacy SW System Key Enable
GA01771: Enhancement Level 2
G51: SmartZone Systems Operation
GA09008: Group Services
GA00229: Enable GPS/GNSS Operation
GA00631: DVRS MSU Activation
W947: APCO Packet Data Interface
QA03399: Enhanced Data Operation
G387: Conventional Voting Scan
G173: SmartZone Omnilink MultiZone Operation
GA00580: Enable TDMA Operation
G361: ASTRO 25 9600 Baud Trunking
G445: Fireground Accountability Software
QA07680: Multi System OTAR
THE APX6500 WILL DO BOTH APCO P25 PHASE I (FDMA) AND PHASE II (TDMA)
| Technical Specifications | |
|---|---|
| Frequency/Rate | UHF R2 450-520 MHZ |
| Channels | 3000 Channels |
| Power Output |
450-520 MHZ 10-45 WATTS |
| Channel Spacing | 2.5/5.0/12.5/20/25 kHz |
| Operation | |
| Package | N/A |
| Durability | Weather, water, humidity, and impact resistant polycarbonate blend housing |

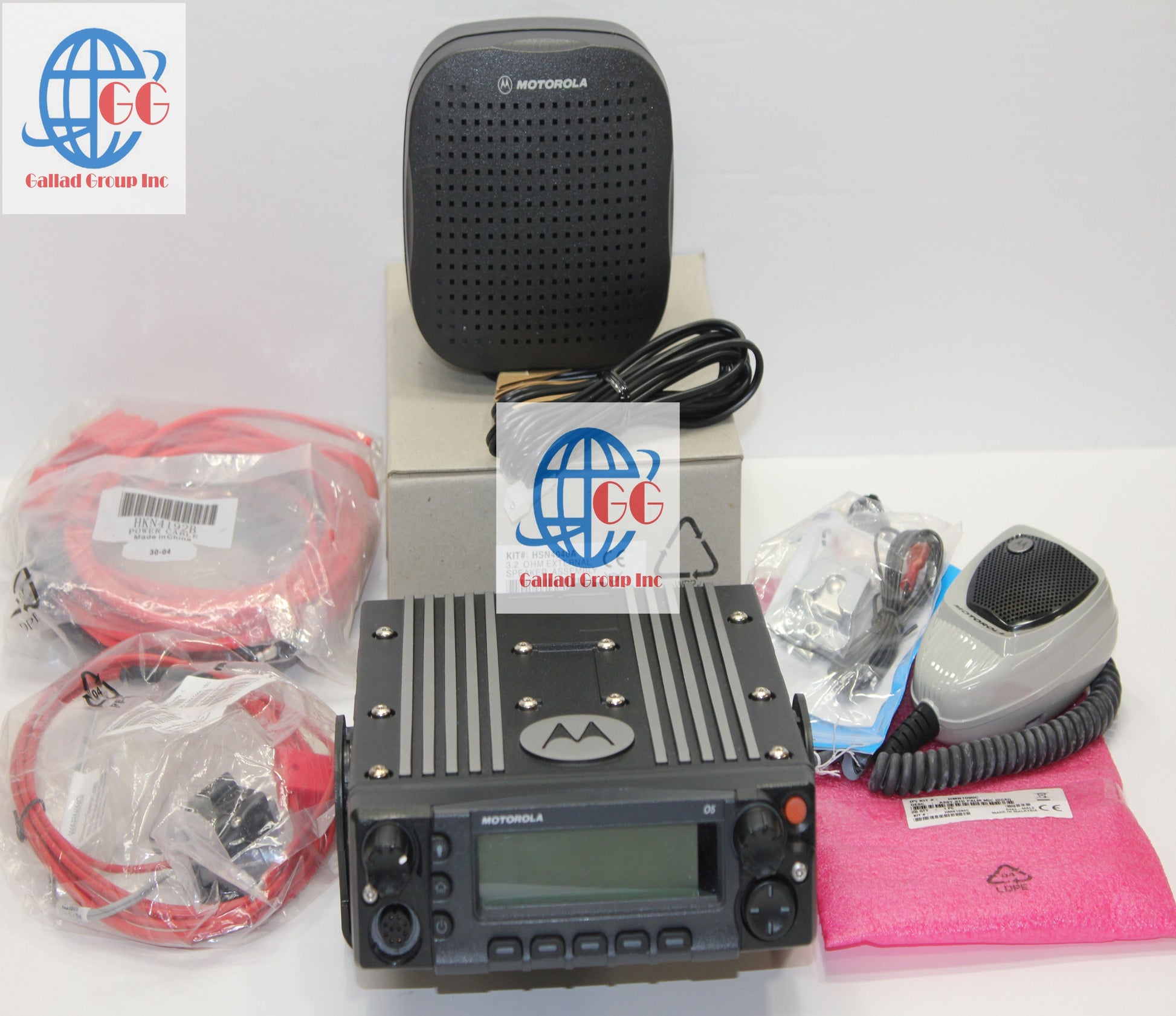

INCLUDED WITH THE RADIO ARE THE FOLLOWING ACCESSORIES:
TESTED MOTOROLA O5 CONTROL HEAD
NEW MOTOROLA POWER CABLE HKN4191
NEW MOTOROLA MOUNTING BRACKET
1-NEW MOTOROLA EXTERNAL SPEAKER
1-NEW MOTOROLA IGNTION CABLE
