GALLAD GROUP INC

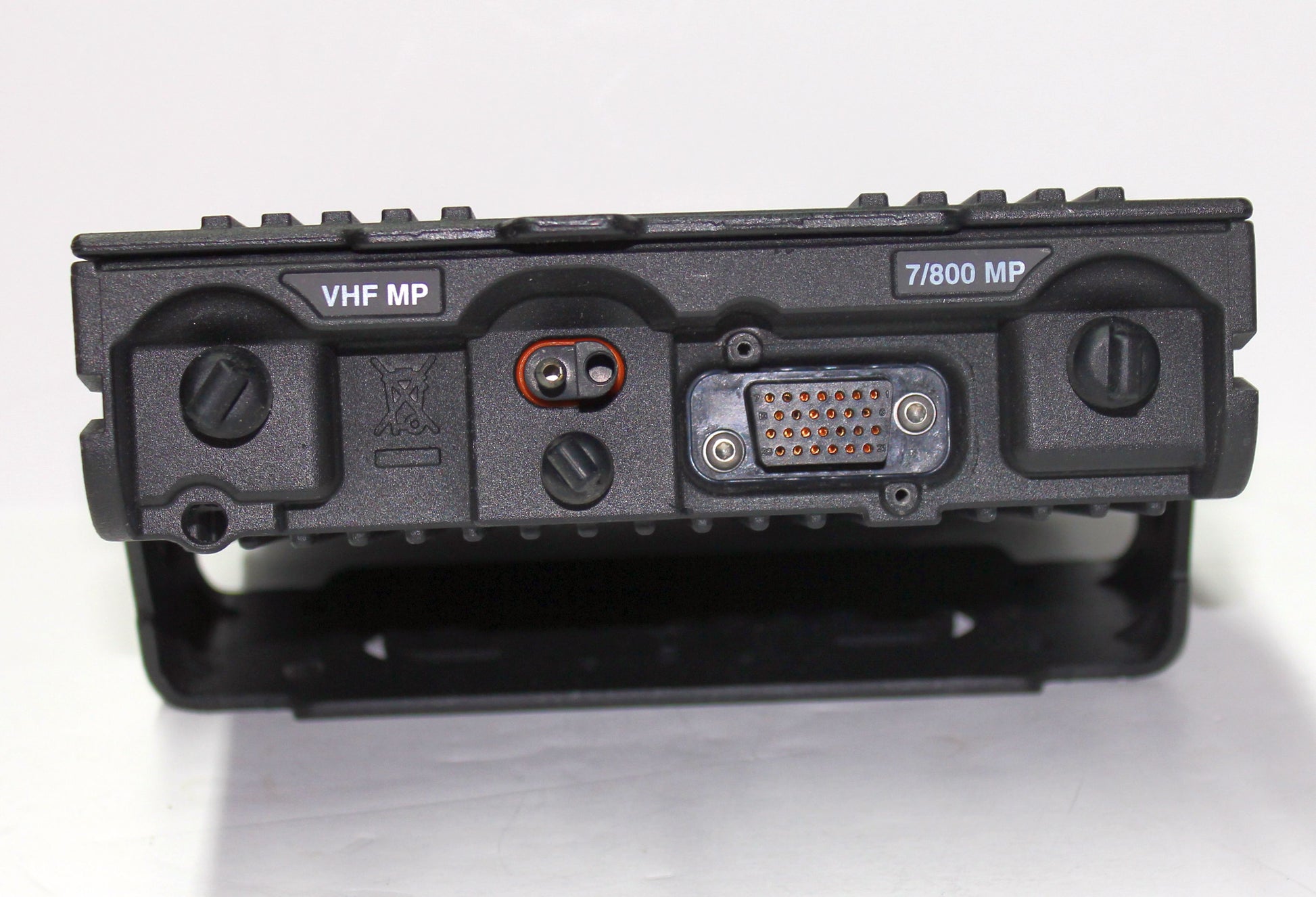

MOTOROLA APX APX7500 700/800 VHF DUAL BAND DIGITAL RADIO P25 TDMA DUAL HEADS AES
MOTOROLA APX APX7500 700/800 VHF DUAL BAND DIGITAL RADIO P25 TDMA DUAL HEADS AES
Couldn't load pickup availability
The Motorola APX7500 represents professional-grade mobile digital radio technology, engineered for demanding communication environments. This dual-band unit operates across VHF (136-174 MHz) and UHF (700-800 MHz) frequencies, delivering versatility for multi-band operations. The remote-mount configuration with dual Motorola O2 control heads provides flexible deployment options for vehicle installations. This unit arrives in excellent tested condition, featuring ADP capability with AES-256 and AES-GCM encryption standards for secure communications. Every radio undergoes rigorous bench testing and alignment using our Aeroflex 3920 Auto-test Suite, ensuring factory specification performance and complete traceability. The radio retains original factory tags with matching serial numbers, and firmware has been upgraded to R33.52.00 Model M30TSS9PW1AN comes complete with all new accessories, offering a comprehensive P25 TDMA solution ready for immediate deployment.
136-174 MHZ + 700-800 MHZ
REMOTE MOUNT
DUAL MOTOROLA O2 CONTROL HEAD
ONE OF THE BEST RADIOS OUT THERE COMES WITH ALL NEW ACCESSORIES
ADP , AES-256 , AES-GCM
Every unit undergoes rigorous validation using our advanced Aeroflex 3920 automated testing and alignment platform, ensuring precision calibration to original manufacturer standards. This comprehensive quality assurance process guarantees optimal performance and reliability for your P25 Phase I & II digital communications equipment.
MODEL M30TSS9PW1AN
Flashcode:Bz125g-19H691-3-0c0000-000000
G806: ASTRO IMBE Digital Operation
W12: Preamp
G996: Over the Air Provisioning
GA00243: Federal Government FPP
G298: Hardware Multikey Encryption w/ OTAR
GA01767: ASTRO 25 Trunking Radio Authentication
GA00244: Primary Band: 700/800F
GA00308: Seconary Band: VHF Mid Power
GA00579: Enable Dual Band Operation
QA01749: Legacy SW System Key Enable
G51: SmartZone Systems Operation
QA00631: DVRS PSU Activation
GA01833: Extreme 1-Sided Noise Reduction
GA00229: Enable GPS/GNSS Operation
GA00631: DVRS MSU Activation
W947: APCO Packet Data Interface
QA03399: Enhanced Data Operation
G387: Conventional Voting Scan
G173: SmartZone Omnilink MultiZone Operation
GA00580: Enable TDMA Operation
G361: ASTRO 25 9600 Baud Trunking
G445: Fireground Accountability Software
THE APX7500 WILL DO BOTH APCO P25 PHASE I (FDMA) AND PHASE II (TDMA)
|
Technical Specifications |
|
|
Frequency/Rate |
700/800 MHZ , VHF 136-174 MHZ |
|
Channels |
3000 Channels |
|
Power Output |
700/800 MHZ 10-35 WATTS VHF 136-174 MHZ 10-55 WATTS |
|
Channel Spacing |
2.5/5.0/12.5/20/25 kHz |
|
Operation |
P25, TDMA P25 PHASE II , PHASE I |
|
Package |
FULL KEYPAD |
|
Durability |
Weather, water, humidity, and impact resistant polycarbonate blend housing |

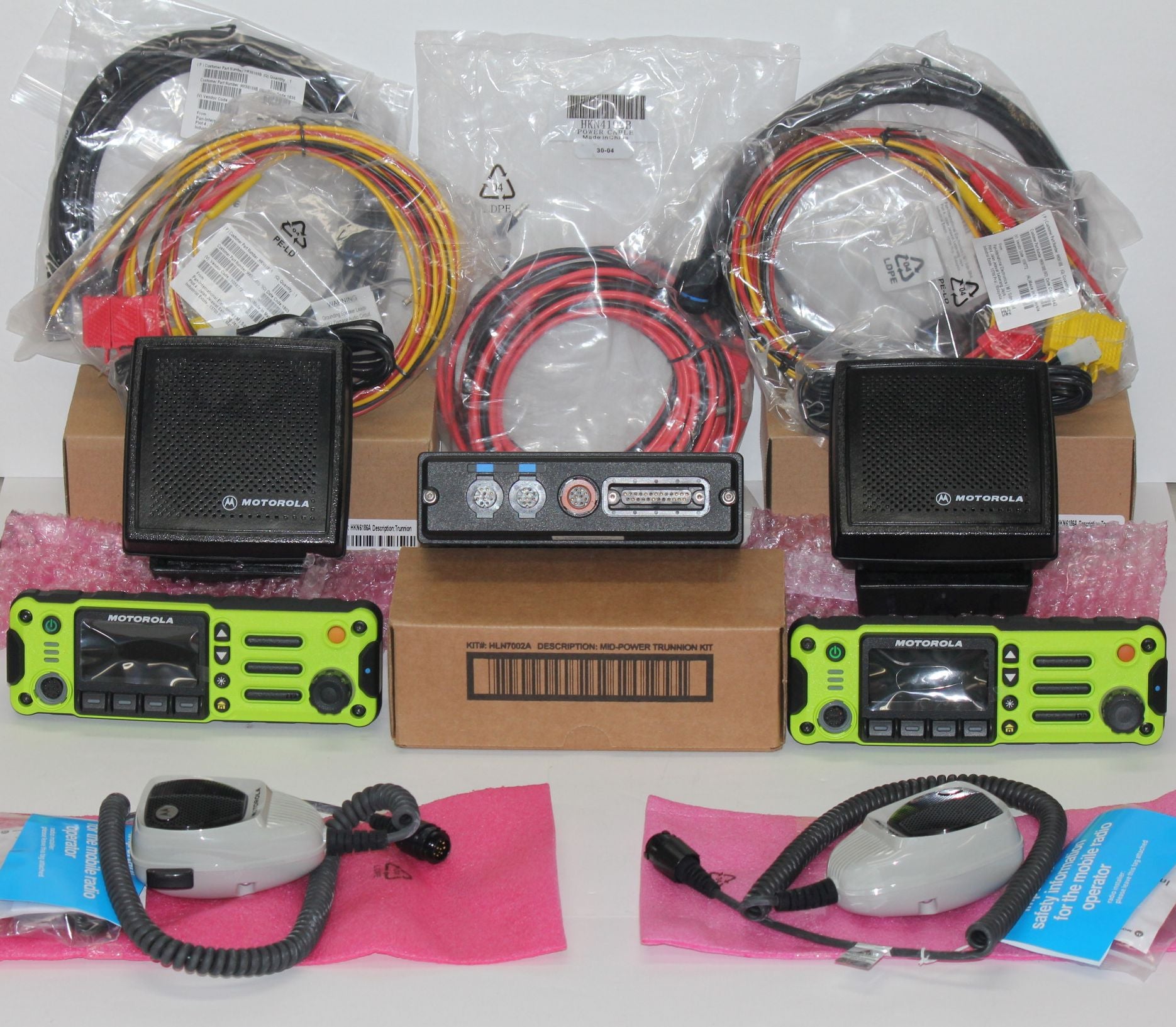

INCLUDED WITH THE RADIO ARE THE FOLLOWING ACCESSORIES:
2-TESTED MOTOROLA O2 CONTROL HEAD

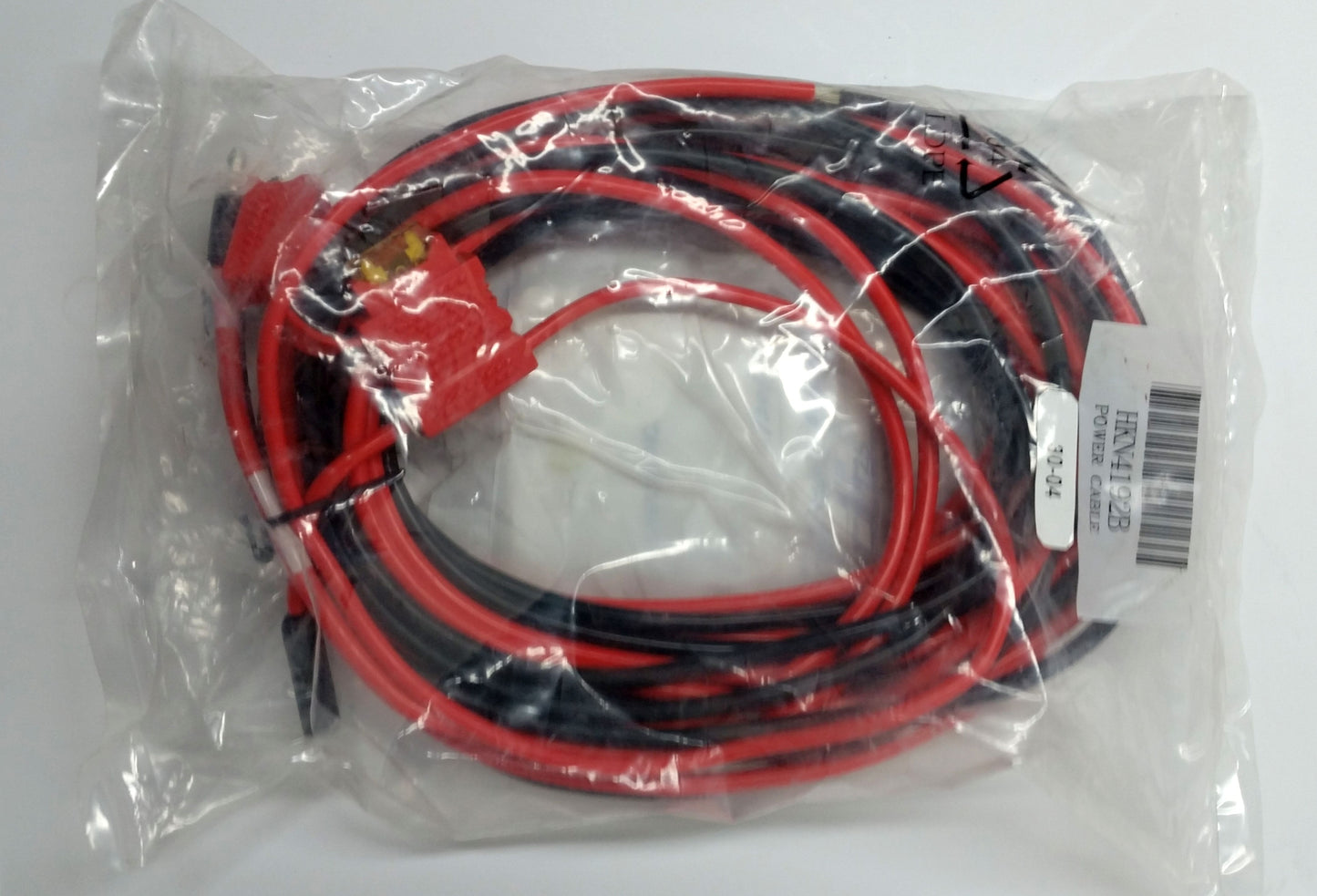

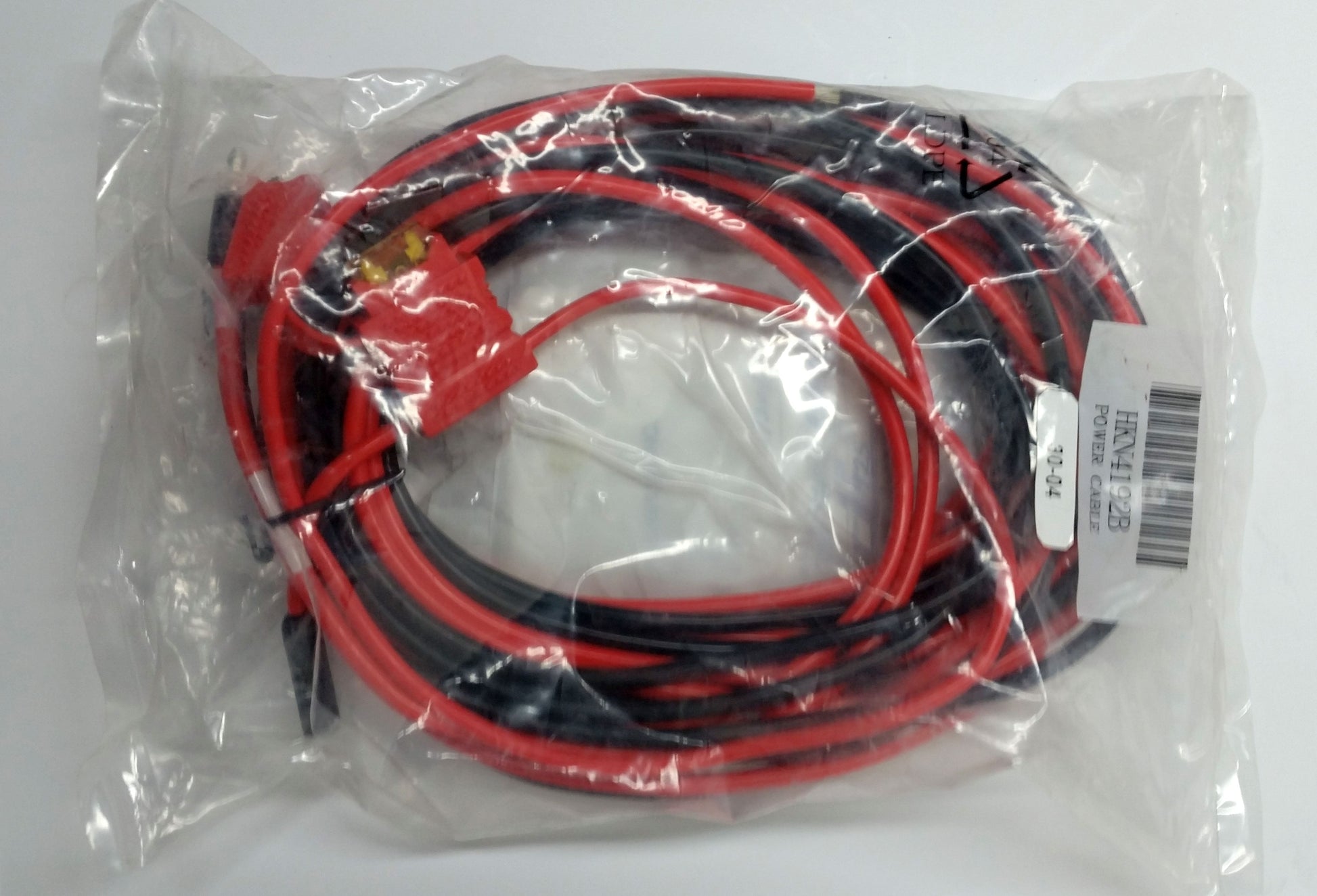

NEW MOTOROLA POWER CABLE HKN4191

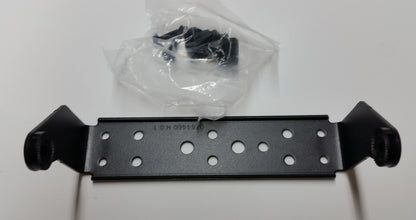

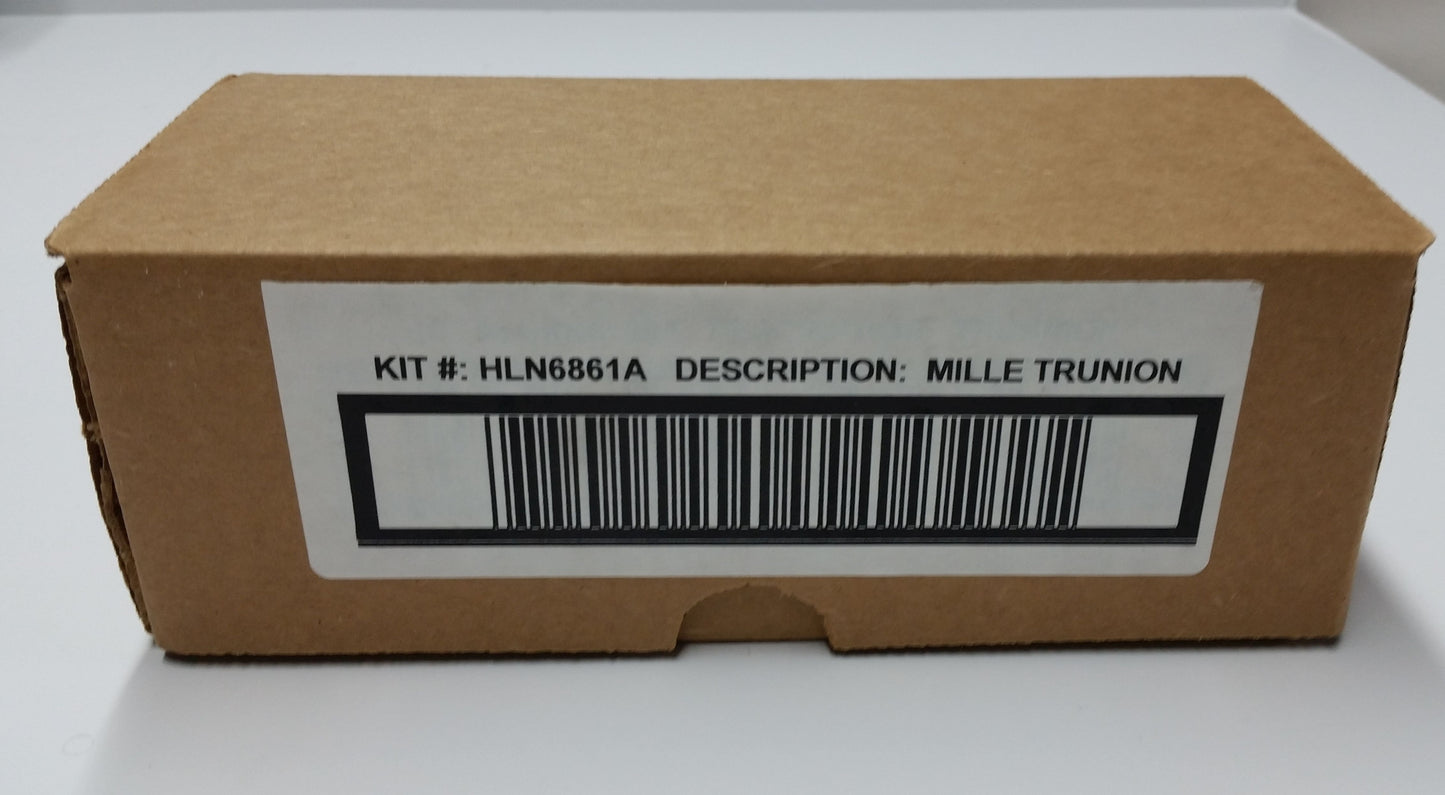

NEW MOTOROLA MOUNTING BRACKET
2-NEW MOTOROLA EXTERNAL SPEAKER

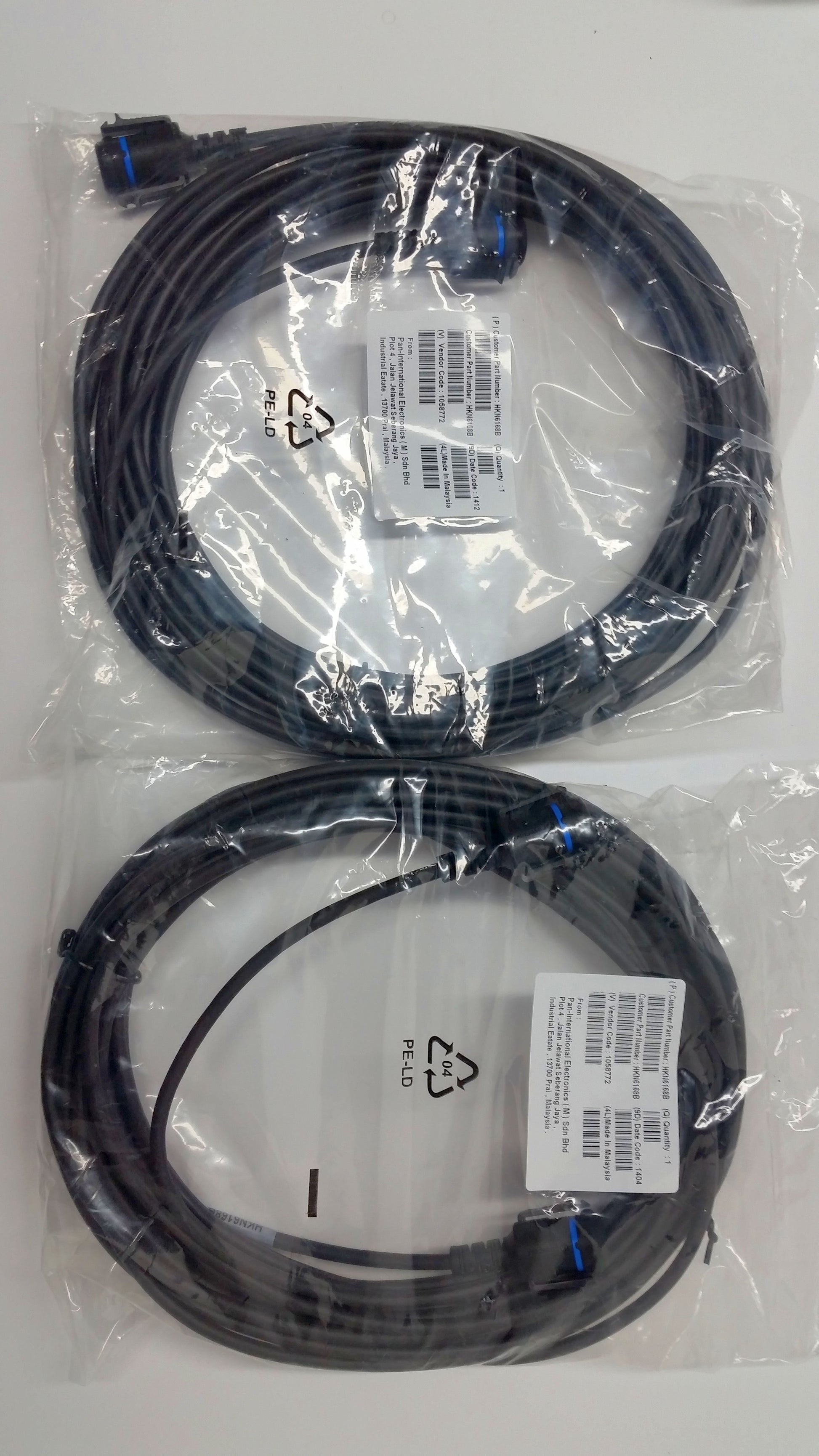

2-NEW MOTOROLA HKN6169 CONTROL HEAD EXTENDED CABLE

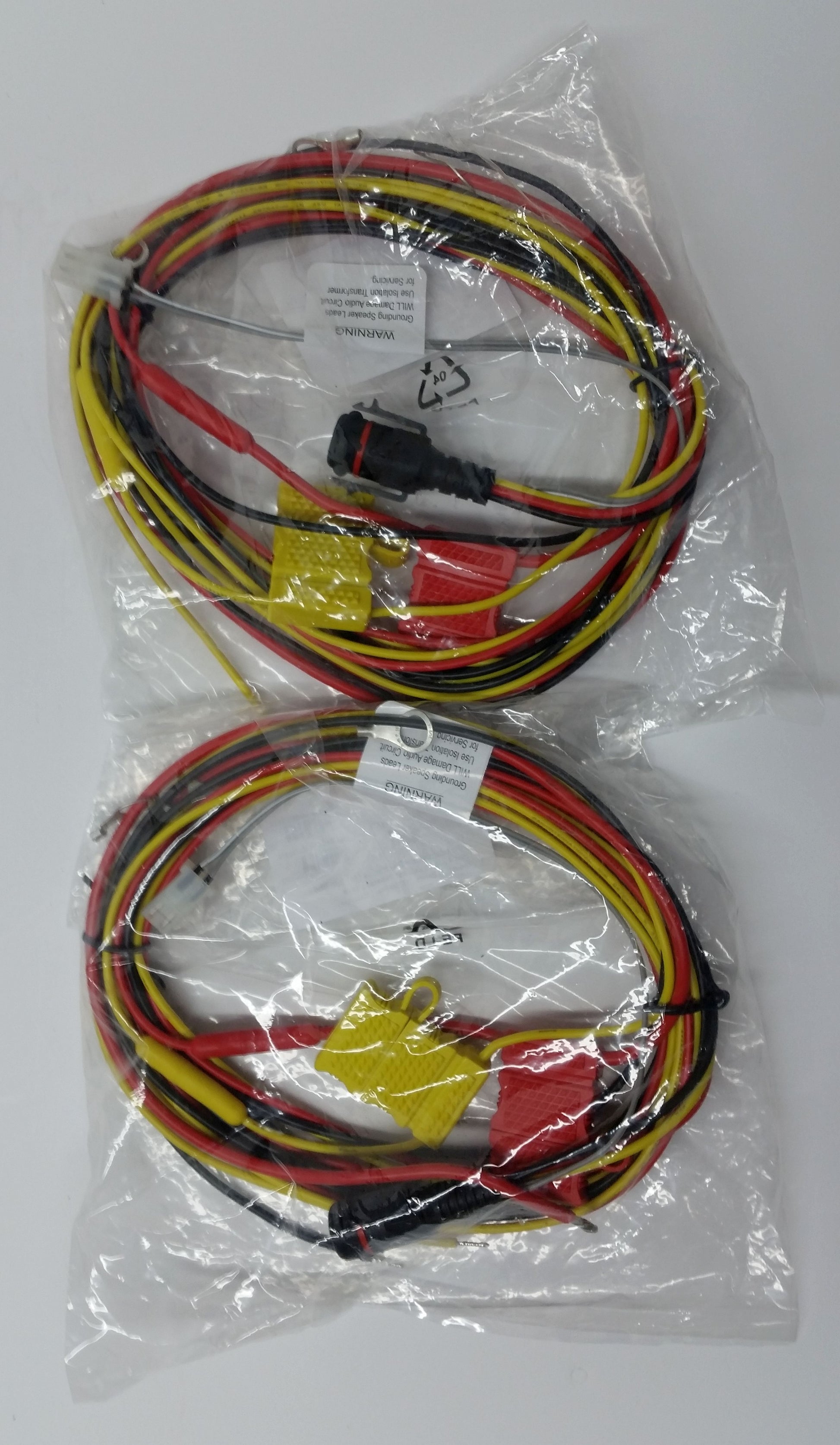

2-NEW MOTOROLA HKN6168 IGNTION CABLE
